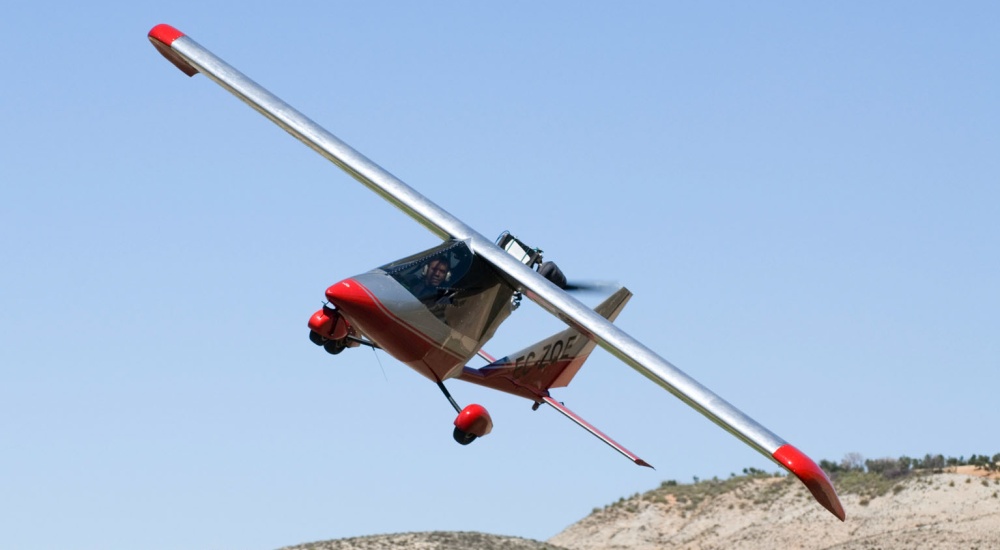

Tornado II

---

---

The Tornado 2 incorporates material and systems not commonly found in aircraft comparably priced. This, combined with Titan Aircraft’s renowned reputation for high quality product, superior aircraft performance and outstanding customer support, is sure to provide the pilot and kit builder a very pleasurable experience, and a fantastic resale value. The kit has an estimated build time of 150 - 300 hours and includes all required material, components and fasteners. The kit does not however include the engine, propeller, and instruments because of different customer preferences.

This aircraft combines friendly low speed handling characteristics with agility and high performance. The Tornado 2 is designed to a +6g / -4g load limit capability at 1000 pounds gross weight. When operating with the rotax 582 engine the cruise speed is in excess of 110 mph. The stall speed in landing configuration flying solo is 35 mph. We invite inquiries. Please contact a member of our sales team at sales@titanaircraft.com. We look forward to speaking with you!

---

Specifications

Empty Weight:	440 lbs	199.6 kg
Gross Weight:	1,000 lbs	453.6 kg
Length:	19 ft	5.79 m
Height:	6 ft 6 in	1.98 m
Wing Span:	23 ft 6 in	7.16 m
Wing Area:	108 sq ft	10.03 sq m
Cabin Width:	28.5 in	723.9 mm
Cabin Head Room:	39 in	990.6 mm
Cabin Leg Room:	42 in	1,066.8 mm
Fuel Capacity:	15 gal	56.8 l
Engine:	Rotax 582
Power:	65 HP	48 kW
VNE:	150 mph	241 kph
Cruise Speed:	110 mph	177 kph
Stall Speed:	35 mph	56 kph
Range:	275 mi	442 km
Climb Rate:	1,600 fpm	8.13 m/s
Take Off Run:	300 ft	91.44 m
Landing Roll:	250 ft	76.2 m
Ceiling:	12,500 ft	3,810 m
Price:	$14,949 U.S.D.*

*Price does not include engine or any other options

---

Pricing and Options

***Price are subject to change without notice.  Please call or e-mail to confirm prices.***

If Purchased Seperately	Prices
Wing Kit	$5,940
Fuselage Kit	$6,825
Finish Kit	$3,245
Total	$16,010
If Purchased Together	$14,949

---

Engine	Price
Rotax 582	$5,420

---

Fast Build Options	Prices
Pre-Built Wing 1	$2,800
Pre-Built Wing and Partial Fuselage 2	$5,900
Ready to Fly (No Paint)	$15,000

1	The pre-built wing option includes a factory built wing structure with aileron control linkage, flap linkage and wing skins permanently installed. The builder must install the ailerons, flaps and fiberglass wing tips.
2	The partially-built fuselage includes factory installed landing gear, control systems, brakes, belly skins, tail boom and tail surfaces. The builder installs the doors, windows, nose cone, aft panels, engine, engine systems, instruments, paint and accessories.

Options List

---

Gallery

(Click on pictures to make them larger)
